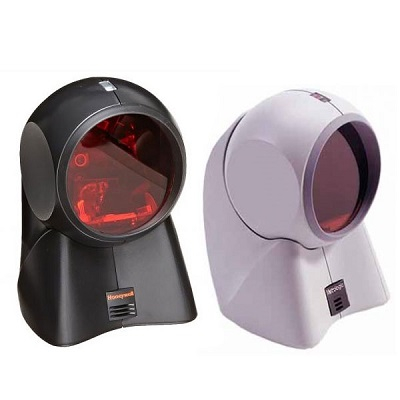

Honeywell Orbit 7120

Orbit™: is the all-time, best-selling hands-free omnidirectional scanner for a reason. Several reasons, actually. Let’:s start here: The Orbit 7120 scanner are innovative, elegant and affordable with an award-winning design that’:s just the right fit for convenience retail applications where counter space is at a premium.


  • The Orbit scanner has an engineered “:sweet spot”: to optimize scan performance and first pass read rate.
  • Retail operations can protect their POS investment with free firmware updates via MetroSet 2 software and a standard PC.
  • A built-in RF EAS antenna (Orbit 7180 scanner only) increases ef ciency by simultaneously deactivating RF EAS tags and decoding barcodes.
  • A 20-line scan omnidirectional pattern provides aggressive scanning as an additional benefit to hand presentation applications.
  • An adjustable scan head enables users to tilt the scanner 30°: for targeted scanning of larger products.

FEATURES

  • Form Factor
    • Counter Top
  • Features
    • Built-In RF EAS Antenna
    • Automatic Scanning Operation
    • Aggressive Scan Performance
    • Adjustable Scan Head
    • Sweet Spot Scanning

DIMENSIONS

  • Overall Dimensions
    • 10.5 x 10.2 x 15 cm
    • 4.1 x 4 x 5.9 in

SCANNING SPECIFICATIONS

  • Maximum Brightness
    • 4842
  • Skew
    • 60
  • Scan Pattern
    • Omni-Directional
  • Decode Capability
    • 1D
    • GS1 DataBar
  • Pitch
    • 60
  • Scanning Range
    • Presentation (0 ft to 10 ft (0 mm to 255 mm))
  • Print Contrast
    • 35

HARDWARE

  • Engine Type
    • 1D Laser
  • Host System Interface
    • KBW
    • USB
    • RS485
    • RS-232

ELECTRICAL

  • Input Voltage
    • 5 V DC
  • Standby Current
    • 170 mA

ENVIRONMENTAL

  • Storage Temperature Range
    • - 40 - 140 °F
    • - 40 - 60 °C
  • Operating Temperature
    • 32 - 104 °F
    • 0 - 40 °C
  • Operating Humidity
    • 5 - 95 %

SERVICE TERMS

  • Warranty Duration
    • 3 yr
