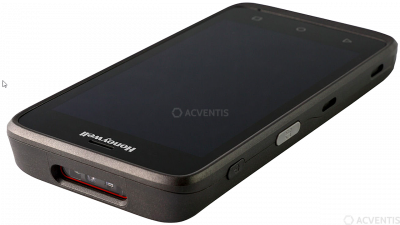

Mobile terminal EDA52

EDA52 is Honeywell’s next generation ScanPal series PDA equipped with the latest Qualcomm® Snapdragon™ octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.0 and 4G LTE communication. A prominent 5.5 inch gorilla glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day. The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication. The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables accurate and fast reading even of damaged or incomplete barcodes


Dimensions: 159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)

Weight: 260 g (9.17 oz)

Display Size: Gorilla Glass 5, size 13.84cm (5.45 in)

Resolution: 1440 x 720 High Definition

Backlight: LED

Touchscreen: Multi-touch capacitive (CTP), GFF

Hard Keys: 5 side keys for volume up/down, right and left scan keys and power on/off


Operating Temperature: -20°C to +50°C (-4°F to +122°F)

Storage Temperature: -30°C to +70°C (-22°F to 158°F)

Humidity: 5% to 90% (non-condensing)

Drop: Multiple 1.3 m (4.3 ft) drops to concrete at room temperature

Multiple 1.5m (5ft) drops with rubber boot concrete at room temperature

Tumble: 550 times at 0.5 m (1.64 ft)

Environmental Sealing: IP67 Electrostatic Discharge (ESD): ±8 kV direct; ±12 kV air


Processor: Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz

Memory: 3 GB RAM/32 GB Flash; 4 GB RAM/64 GB Flash; 6 GB RAM/64 GB Flash; 6 GB RAM/128 GB Flash

Operating System: Android 11

Storage Expansion: MicroSD (up to 128 GB)

Rear Camera: 13-megapixel color camera

Front Camera: 5-megapixel color camera

PC Interface: USB 2.0 with Type-C interface

Interface Ports: Separate SKU 2 or 6 pin bottom connection

Battery: Li-Ion, 3.8 V, 4,500 mAh, removable Real-Time Clock (RTC): 10 min backup via super-cap

Charging Time: less than 3.5 hours

Battery Runtime: more than 12 hours

Scan Engine: Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
