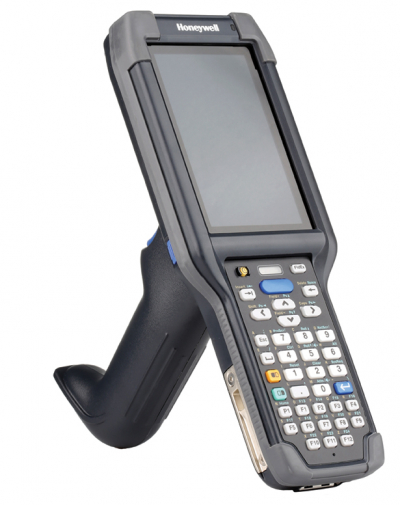

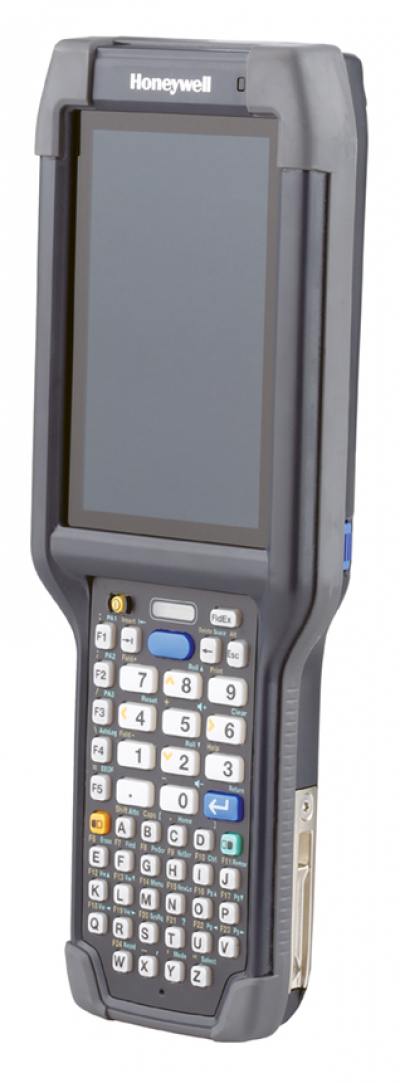

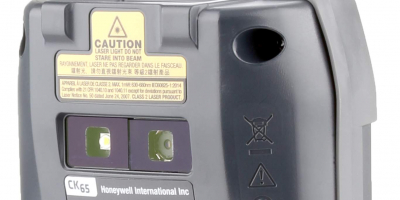

Mobile Terminal CK65

Extending the popular ergonomic design of the CK3X/R model, the Dolphin™ CK65 Mobile Computer takes the best and makes it even better, giving you the power to put accuracy and productivity in the hands of your workers with a mobile solution that offers easy deployment and fast return on investment.

Built on the Mobility Edge™ platform, the Dolphin CK65 device offers an integrated, repeatable, and scalable approach based on a common hardware and software platform, unleashing customers from constraints faced today around integration and inflexible technologies without sacrificing enterprise security, reliability, performance, or management features.

Juggling multiple devices across the enterprise introduces time- and cost-intensive complexities for Enterprise IT to manage and maintain. The Mobility Edge platform enables customers to accelerate provisioning, certification, and deployment across the enterprise. The Dolphin CK65 device offers an extended product lifecycle through Android™ R to maximize return on customer investment and provide a lower overall TCO. And it’s validated by Android Enterprise Recommended, a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their enterprise needs.

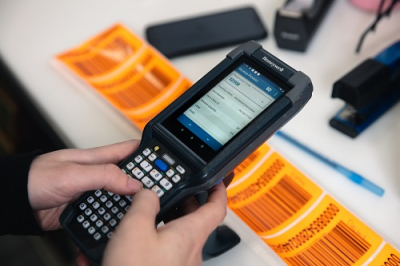

The rugged Dolphin CK65 mobile computer features a fast processor, advanced network connectivity, and enhanced 1D/2D scanning plus extended battery life lasting over 18 hours to keep workers connected and productive throughout multiple shifts. The Dolphin CK65 computer is rated to IP64 and can withstand multiple 2.4 m (8 ft) drops to concrete and 2,000 1.0 m (3.3 ft) tumbles. The large, vivid 10.16 cm (4 in) touchscreen display can be read easily indoors and out, and used with finger, glove, or stylus, making it ideal for warehouse, manufacturing, and other challenging environments

Bulnex AD is a Platinum Partner and the only authorized Honeywell warranty and out-of-warranty service for the territory of the Republic of Bulgaria


MECHANICAL

N6703SR Version Dimensions
22.7 cm x 8.3 cm x 4.2 cm (8.9 in x 3.3 in x 1.7 in)

N6703SR Version Weight
498 g (17.6 oz) with battery pack

EX20 Version Dimensions
22.7 cm x 8.3 cm x 4.7 cm (8.9 in x 3.3 in x 1.9 in)

EX20 Version Weight
544 g (19.2 oz) with battery pack

ENVIRONMENTAL

Operating Temperature
-20°C to 50°C (-4°F to 122°F)

Storage Temperature
-30°C to 70°C (-22°F to 158°F)

Humidity
0 to 95% relative humidity (non-condensing)

Drop
2.4 m (8 ft) to concrete across temperature per MIL-STD 810G

Tumble
2,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification

ESD
±15 kV Air and ±8 kV Direct

Environmental Sealing
Independently certified to meet IP64 standard for moisture and particle intrusion

SYSTEM ARCHITECTURE

Processor
2.2 GHz Qualcomm® 64-bit Snapdragon™ octa-core

Operating System
Android 8.0 Oreo (system compatible up to Android R)

Memory
2 GB/4 GB DDR4 RAM, 32 GB Flash

Display

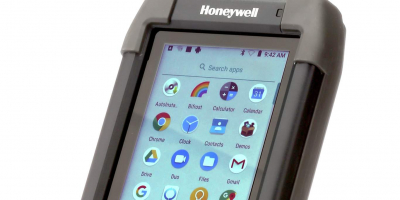

10.16 cm (4 in) 480 x 800 bright color LCD with backlight, outdoor readable, optically bonded to touch panel

Touch Panel
Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use with many off-the-shelf gloves

Keypad

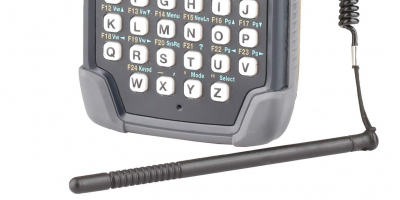

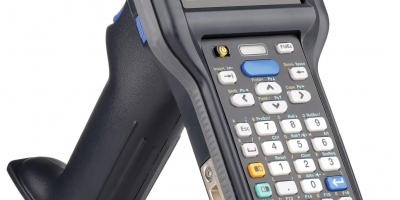

51-key alpha or 38-key numeric keypad, plus two programmable side buttons

Audio
Speaker, microphone support with noise cancellation. PTT support and Bluetooth® wireless headset support

I/O Ports
Durable, custom I/O connector compatible with CK3 accessories

Camera
13.0-megapixel color camera with autofocus and advanced software features for better image quality, f/2.0 aperture, flash LED with flashlight mode

Sensors
Ambient light sensor, accelerometer, gyroscope, hall effect

Storage Expansion
User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)

Battery
Li-Ion, 3.7 V, 5100 mAh

Hours of Operation
18 hours

Scanning Capabilities
Honeywell N6703 Slim Imager Engine (1D/2D); Honeywell EX20 Near/Far Imager (1D/2D, 0.15 m to 15.2 m [6 in to 50 ft]); Honeywell Scanning SDKs for Android

Application Software
Honeywell Utilities and Demos

Warranty
One-year limited factory warranty
