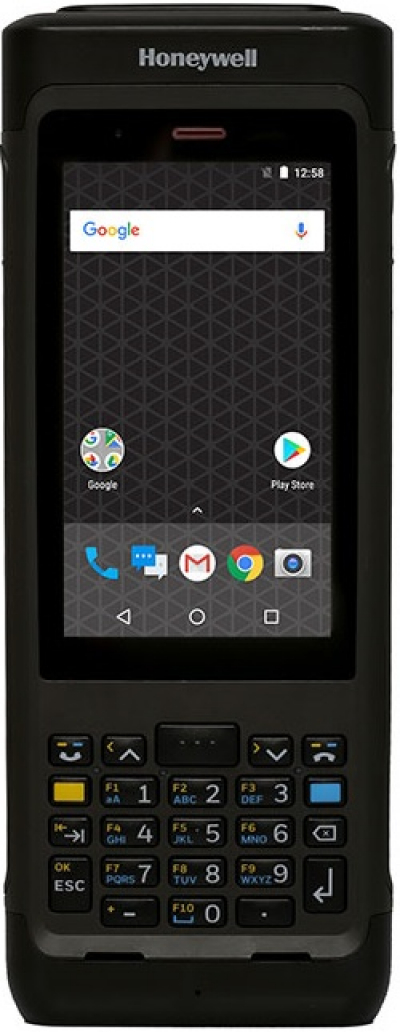

Mobile terminal CN80

Whether you’re transitioning to touchscreen capabilities or you’re key-dependent due to the nature of your business, the Honeywell Dolphin™ CN80 handheld computer can help you improve the speed and accuracy of operations while positioning you for the future. This rugged, Android™-compatible handheld computer features full-touch capabilities plus real keys for fast data entry at high transaction rates even in severe settings.

Logistics, warehouse and field mobility organizations alike are transition to devices built on Android and from keypad-centric devices to full touch screen. But many legacy applications have not yet been updated for this new touch-centric world and for many use cases, keys remain essential for data capture.

Fortunately, there's one ultra-rugged mobile computer that helps bridge the gap. The Dolphin CN80 device offers both a large 4.2-inch vivid color touchscreen and a choice of numeric or QWERTY keypads, allowing users to pick the best input method for their environment today, and also be ready for the touch-centric applications of the future.

Built on the Honeywell Mobility Edge platform, the Dolphin CN80 offers an integrated, repeatable, and scalable approach based on a common hardware and software platform – unleashing customers from constraints faced today around integration and inflexible technologies without sacrificing enterprise security, reliability, performance, or management features.

Juggling multiple devices across the enterprise introduces time-and cost-intensive complexities for Enterprise IT to manage and maintain. The Mobility Edge platform enables customers to accelerate provisioning, certification, and deployment across the enterprise. The Dolphin CN80 device offers an extended product lifecycle across four generations of Android, from Android Nougat to Android Q, to maximize return on customer investment and provide a lower overall TCO. The device’s advanced enterprise lifecycle tools also simplify frequently repeated tasks such as software updates, training new employees, and managing spare pools.

Plus, the ultra-rugged Dolphin CN80 features fast data processing and 1D/2D scanning, advanced network connectivity, and advanced battery life lasting twice as long as previous generations to keep your workers connected and productive throughout multiple shifts.

Bulnex AD is a Platinum Partner and the only authorized Honeywell warranty and out-of-warranty service for the territory of the Republic of Bulgaria

Processor
2.2 GHz Qualcomm Snapdragon™ 660 octa-core

Operating System
Android 7.1 Nougat, upgradable through Android Q

Memory
3 GB/4 GB RAM, 32 GB Flash

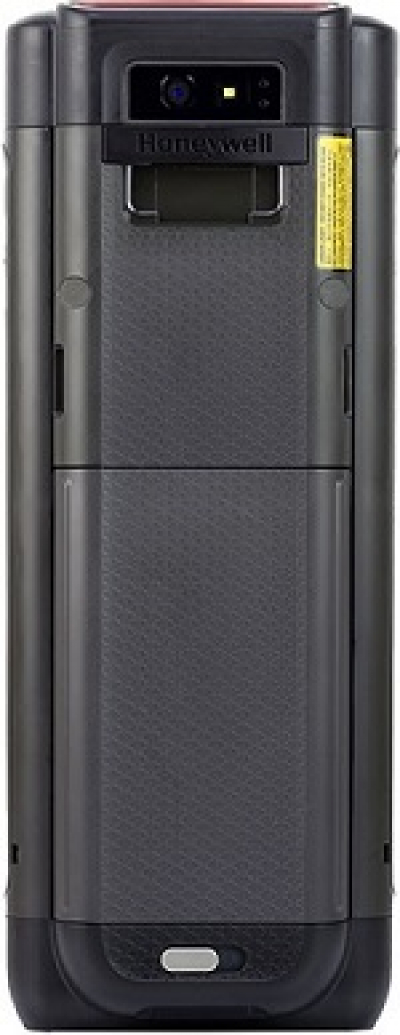

Camera
13.0-megapixel color camera with autofocus and advanced software features for better image quality

Audio
Speaker, T3/M3 HAC-compliant, dual microphone support with noise cancellation. PTT support and Bluetooth® wireless headset support

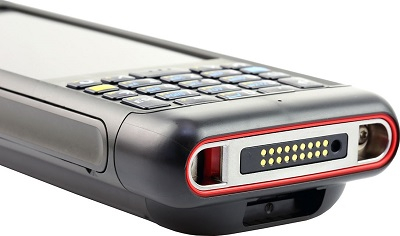

I/O Ports
Custom durable I/O connector with USB 3.0 signals and power input

Sensors
Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, pressure sensor

Storage Expansion
User-accessible microSD card up to 512 GB (SDXC/SDHC-compliant)

Display
106.7 mm (4.2 in) FWVGA (854 x 480) bright color LCD with backlight, outdoor viewable, optically bonded to touch panel

Touch Panel
Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight viewability. Automatic detection and configuration utilizing mutual and self-capacitance modes for water rejection and use with many off-the-shelf gloves

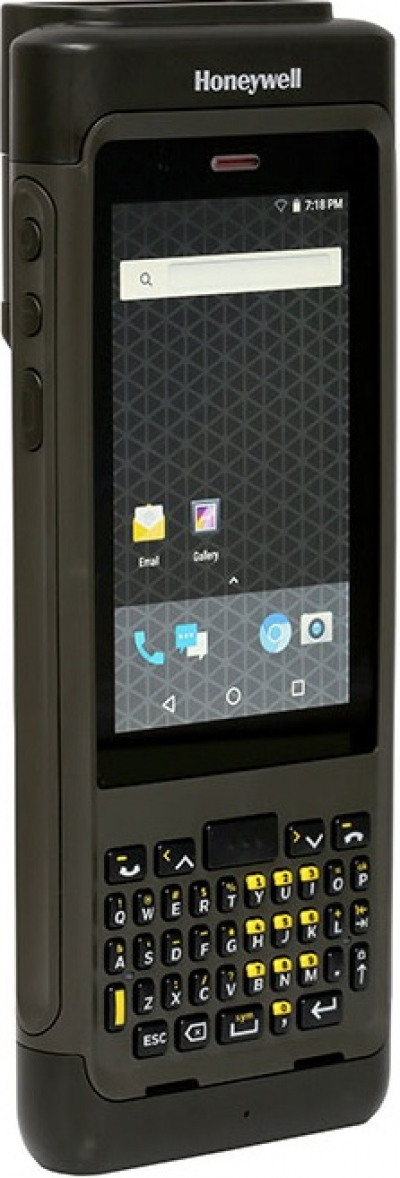

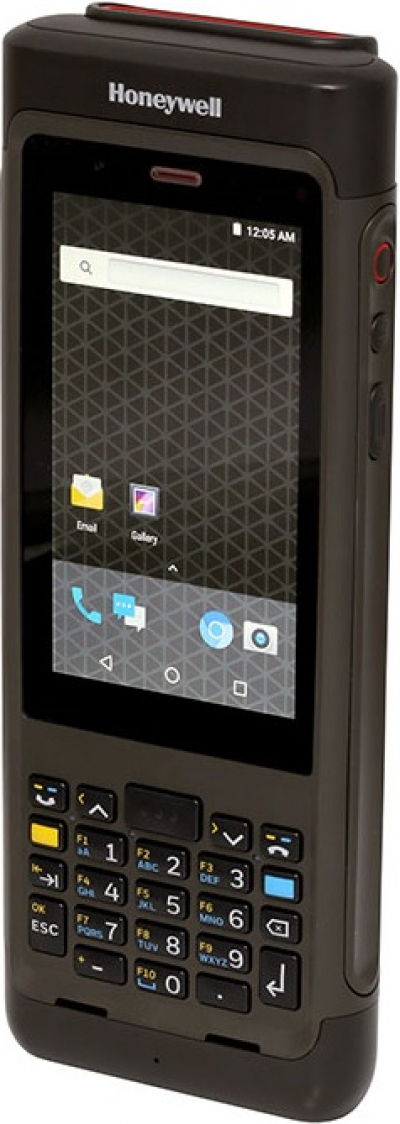

Keypad
40-key QWERTY keypad or 23-key numeric function keypad, plus dual side scan triggers, volume up/down, camera, power on-screen keypad

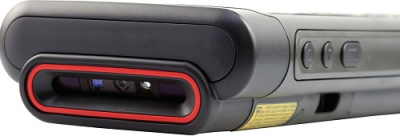

Scanning Capabilities

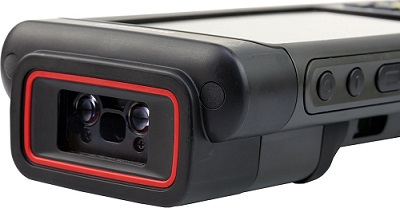

Honeywell N6603ER Imager (1D/2D); Honeywell EX20 Near/Far Imager (1D/2D, 0.15 m to 15.2 m [6 in to 50 ft]); Honeywell Scanning SDKs for Android

Battery
Li-Ion, 3.85 V, 5800 mAh with integrated battery diagnostics

ENVIRONMENTAL

Operating Temperature
Standard Temp Unit: -20°C to 50°C (-4°F to 122°F)
Cold Storage Unit: -30°C to 50°C (-22°F to 122°F)

Storage Temperature
-30°C to 70°C (-22°F to 158°F)

Humidity
0 to 95% relative humidity (non-condensing)

Drop
2.4 m (8 ft) to concrete at room temp per MIL-STD 810G;
1.8 m (6 ft) to concrete at -20ºC to 50ºC (-4°F to 122°F) temperature range;
1.6 m (5 ft) to concrete down to -30ºC (-22°F)

Tumble
Exceeds 2,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification

ESD
±15 kV Air and ±8 kV Direct

Environmental Sealing
Independently certified to meet IP67 and IP65 standards for moisture and particle intrusion

MECHANICAL

Dimensions (L x W x H)
N6603ER Version: 20.4 cm x 7.8 cm x 3.32 cm (8.03 in x 3.07 in x 1.31 in)
EX20 Version: 20.53 cm x 7.8 cm x 3.97 cm (8.08 in x 3.07 in x 1.56 in)

Weight
N6603ER Version: 500 grams (17.6 oz) with battery pack
EX20 Version: 550 grams (19.4 oz) with battery pack

WARRANTY

 One-year factory warranty

WIRELESS CONNECTIVITY

WWAN
WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU) with two micro-SIM slots

  • Up to 400 Mbps CAT13 LTE Downlink
  • Up to 75 Mbps CAT5 LTE Uplink
    • FDD-LTE Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29
    • TDD-LTE Bands 38, 39, 40, 41
    • UMTS/HSPA+ (3G) Bands 1, 2, 4, 5, 6, 8, 9, 19
    • GSM/GPRS/EDGE Quad-Band 850/900/1800/1900 MHz
    • 1xRTT/EV-DO Bands BC0, BC1, BC10 (B26 BW)

WLAN
IEEE 802.11 a/b/g/n/ac; Wi-Fi certified 2x2 MIMO support

Additional WLAN Features
802.11r (802.11k/mc – via future release)

WLAN Security
OPEN, WEP, WPA/WPA2 (Personal and Enterprise)

Supported EAP
TLS, PEAP, TTLS, PWD, FAST, LEAP CCX Version 4 certified

Bluetooth
Class 1.5 V5.0 Bluetooth and BLE

Bluetooth Profiles
HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT

NFC
Integrated Near Field Communication

Zigbee
Integrated Zigbee 3.0 radio for IoT compatibility

VoIP
Supported

VPN
IPSec V4/L2TP, PPTP

Push to Talk (PTT)
Supported

GPS Supported Protocols
Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo, and Beidou

NON-INCENDIVE VERSION

 Suitable for use in Division 2 locations

 Safety: cULus Listing – ISA/ANSI 12.12.01

 Gases: Class I – Groups A, B, C, D

 Dusts: Class II – Groups F, G

 Fibers and Flyings: Class III

 *Max Ambient: 50°C (122°F) T6

ACCESSORIES

 One-bay and four-bay desktop charging/com cradles

 Vehicle cradles and holders

 Wireless charging vehicle cradle

 Snap-on communication/charging adapters

 Removable scan handle, various carrying devices
