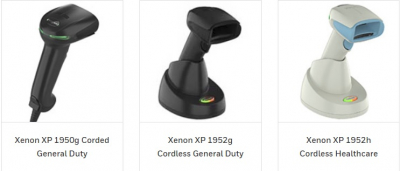

Honeywell Xenon 1950 / 1952

Cashiers struggling to read poorly printed or damaged barcodes can lead to frustration from customers and ultimately lost revenue. Delivering excellent customer service is your mission, and providing lasting impressions for your loyal customers driven by fast, accurate, and friendly checkout experiences is critical. Empower your cashiers to deliver on your mission and commitment to provide excellent customer service experiences with the Honeywell Xenon™ Extreme Performance (XP) series. The Xenon XP 1950g offers superior scan performance, easily capturing even the most difficult-to-read or damaged barcodes.

Engineered to 50 drops at 1.8 m (6 ft) and 2,000 tumbles at 0.5 m (1.6 ft), and with an IP41 ingress rating for water and dust, the Xenon XP 1950g scanner delivers class-leading durability. This significantly reduces scanner downtime and service costs, leading to a longer lifecycle and a lower total cost of ownership.

Designed for retail environments that demand high-accuracy scanning of barcodes, whether at a distance, or even on damaged barcodes, the Xenon XP 1950g scanner reduces strain on the associate – decreasing the need to bend to reach barcodes on the bottom shelf or bottom of the basket. The Xenon XP 1950g is available in Black or Lyric White models to match the scanner to your environment, and an available vibration mode ensures you get scanner feedback regardless of your surroundings.

Bulnex AD is a Platinum Partner and the only authorized Honeywell warranty and out-of-warranty service for the territory of the Republic of Bulgaria.


Specifications

MECHANICAL/ELECTRICAL

Dimensions (L x W x H)
99 mm x 64 mm x 165 mm (3.9 in x 2.5 in x 6.5 in)

Scanner Weight
160 g (5.6 oz)

Input Voltage
4.4V DC – 5.5V DC

Operating Power (Charging) Bases
2.5W (500 mA @ 5V DC)

Host System Interfaces
USB, Keyboard Wedge, RS-232, RS485 support for TGCS (IBM) 46XX

User Indicators
Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (optional)

ENVIRONMENTAL

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-40°C to 70°C (-40°F to 158°F)

Electrostatic Discharge (ESD) (Scanners and Cradles)
±8 kV indirect coupling plane, ±15 kV direct air

Humidity
0% to 95% relative humidity, non-condensing

Tumble
2,000 0.5 m (1.6 ft) tumbles (impacts)

Drop
Engineered to withstand 50 1.8 m (6 ft) drops to concrete

Environmental Sealing
IP41

Light Levels
0 to 100,000 lux (9,290 foot-candles)

SCAN PERFORMANCE

Scan Pattern
Area Image (1280 x 800 pixel array)

Motion Tolerance
Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focus

Scan Angle
SR: Horizontal: 48°; Vertical: 30°
HD: Horizontal: 48°; Vertical: 30°

Print Contrast
20% minimum reflectance difference

Roll, Pitch, Skew
±360°, ±45°, ±65°

Decode Capabilities
Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Note: Decode capabilities dependent on configuration

Warranty
5-year factory warranty
