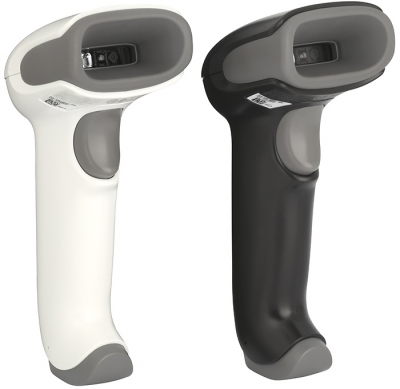

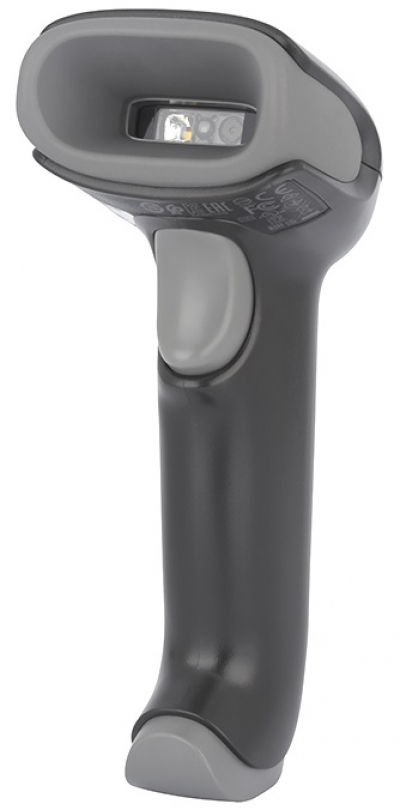

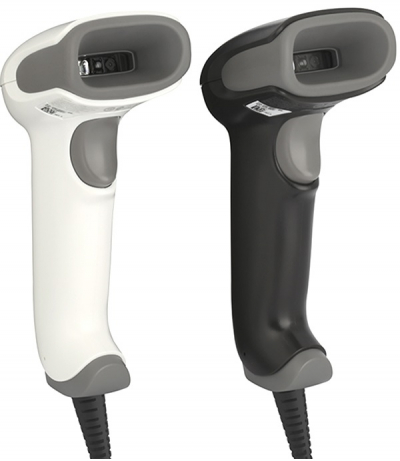

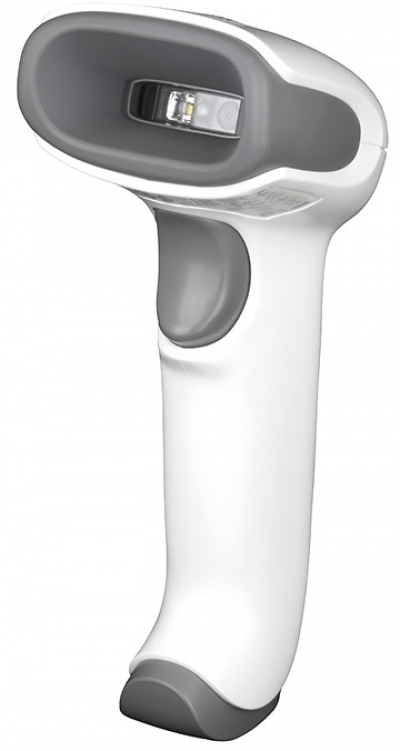

Honeywell Voyager XP 1470 / 1472

For the same competitive price as their predecessor, the Voyager™ XP 1470 series scanners offer you better durability and more powerful scanning capabilities than previous models – or any competitive scanner in their class. They're the perfect handheld scanner option for in-store retail workflows that include 1D and 2D barcode reading, and require a more robust and reliable solution.

We designed the Voyager XP 1470 series scanners to help ensure a better experience for your retail employees and your customers. Their enhanced ability to read poor-quality and damaged barcodes can save everyone from a frustrating checkout experience. The extended scan distance will reach right to the bottom of the customer’s shopping cart, and the long Bluetooth range enables greater operational flexibility for line busting or peak season satellite POS stations.

The Voyager XP 1470 series scanners are ready for the rigors of busy, point-of sale scanning – they're engineered to withstand 30 drops at 1.8 m (6 ft.) and 1,000 tumbles at 0.5 m (1.6 ft.) – all while providing much better accuracy than comparable solutions.

And because we built the Voyager XP 1470 series scanners on the platform of our iconic Voyager series handheld scanners, they are fully backward compatible with any Voyager accessories you already have, reducing your total cost of ownership.

Bulnex AD is a Platinum Partner and the only authorized Honeywell warranty and out-of-warranty service for the territory of the Republic of Bulgaria.

Specifications

MECHANICAL

Dimensions (LxWxH)
1470g: 62 mm x 169 mm x 82 mm (2.4 in x 6.6 in x 3.2 in)
1472g Scanner: 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in)
1472g Base: 132 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in)

Weight
1470g: 130g (4.6 oz)
1472g Scanner: 210 g (7.4 oz)
1472g Base: 179 g (6.3 oz)

ELECTRICAL

Input Voltage
4.0V DC to 5.5V DC

Operating Power
1470g: 2 W (400 mA @ 5V DC)

Standby Power
1470g: 0.45 W (90 mA @ 5V DC)
1472g Charger/Communication Base: 0.5 W (0.1A @ 5V)

Host System Interfaces
1470g: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)
1472g: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)

WIRELESS (1472g only)

Radio/Range
2.4 GHz to 2.5 GHz (ISM Band)
Adaptive Frequency Hopping Bluetooth v4.2
30 m (98 ft) line of sight with Honeywell charger/communication base

Power Options
Battery: 2400 mAh Li-ion minimum
Number of Scans: Up to 50,000 scans per charge
Expected Duration of Operation: 14 hours
Expected Charge Time: 4.5 hours

User Indicators
Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume)

ENVIRONMENTAL

Operating Temperature
1470g: 0°C to 50°C (32°F to 122°F)
1472g Scanner:
Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C (23°F to 122°F)
1472g Charger/Communication Base:
Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C (32°F to 122°F)

Storage Temperature
1470g: -40°C to 60°C (-40°F to 140°F)
1472g Scanner:
For storage up to 90 days: -20°C to 35°C (-4°F to 95°F)
For storage up to 1 year: -20°C to 20°C (-4°F to 68°F)
1472g Charger/Communication Base:
-40°C to 70°C (-40°F to 158°F)

Electrostatic Discharge (ESD) (Scanners and Cradles)
±8 kV indirect coupling plane, ±15 kV direct air

Humidity
Up to 95% relative humidity, non-condensing

Drop
Designed to withstand 30 1.8 m(6 ft) drops to concrete

Tumble
Designed to withstand 1,000 tumbles from 0.5 m (1.64 ft)

Environmental Sealing
1470g: IP40
1472g: IP42

Light Levels
0 to 100,000 lux (9,290 foot-candles)


SCAN PERFORMANCE

Scan Pattern
Area Image (1040 x 720 pixel array)

Motion Tolerance
70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus

Scan Angle
Horizontal: 39.2° nominal
Vertical: 27.4° nominal

Roll, Pitch, Skew
±180°, ±65°, ±70°

Barcode Types
Reads standard 1D, PDF, 2D, and DotCode symbologies

Note
Decode capabilities dependent on configuration.

Warranty
3-year factory warranty

DECODE RANGES

TYPICAL PERFORMANCE*
STANDARD RANGE (SR)
  5 mil Code 3920 mm – 205 mm (0.8 in – 8.1 in)
  13 mil UPC18 mm – 400 mm (0.7 in – 15.8 in)
  6.7 mil PDF41715 mm – 185 mm (0.6 in – 7.3 in)
  10 mil DM**10 mm – 165 mm (0.4 in – 6.5 in)
  20 mil QR5 mm – 325 mm (0.2 in – 12.8 in)

* Performance may be impacted by barcode quality and environmental conditions.

** Data Matrix (DM)
