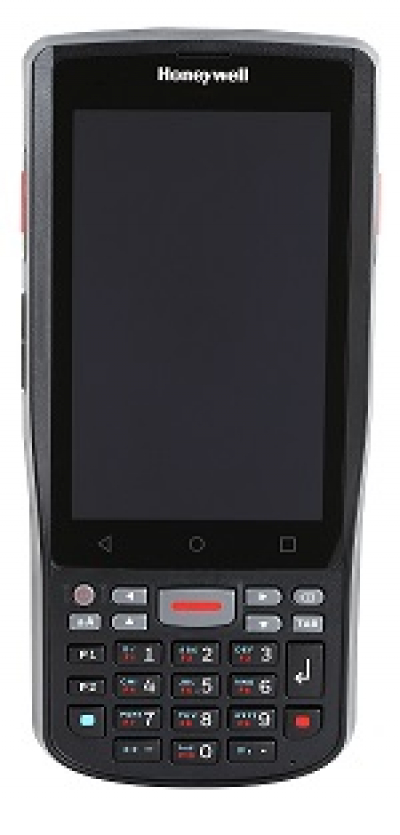

Mobile terminal EDA51K

The Honeywell ScanPal™ EDA51K enterprise mobile computer is a cost-effective device designed for small business to conduct mission-critical workflows in the light-duty warehouse, distribution centre and retail applications.

The ScanPal™ EDA51K is a rugged, keyed mobile computer with enhanced durability (IP65 rated). It can resist a certain level of dust, water, drop, tumble, vibration, humidity, heat, cold and even static electricity.

The EDA51K has high-speed operation performance, it uses Qualcomm® Snapdragon™1.8 GHz octa-core processor, and offers 3G+32G (standard version) and 4G+64G (high-end version) two memory options. Also, it comes with an Android Q system, which makes your business more flexible and protects your built-in investment. In addition, with its powerful 13-megapixel color camera, the EDA51K can take pictures in dim environments and even read damaged packages effortlessly.

To optimize field operation, the EDA51K is equipped with a 10.6cm (4-inch) touch screen with a numeric keypad, greatly improving input efficiency. There are three scan buttons on each side of the mobile computer, specially designed for both left-handed and right-handed people, eliminating discomfort and providing an excellent user experience.

The ScanPal™ EDA51K helps small businesses improve productivity, protect investment while reducing  the total cost of ownership.

FEATURES AND BENEFITS

Get fast, responsive performance with the snappy Qualcomm® Snapdragon™ octa-core processor.

Easily capture barcode data, even damaged, with Honeywell’s bestin-class N6703 scanning engine and a 13-megapixel color camera.

Solution with the right combination of features and reusable accessories for lightduty applications.

With broader network coverage and 4000mAh swappable battery, field works and in-house operators can get connected anytime at anywhere.

The removable battery can be used for a whole shift, so you don't have to worry that it may run out of power during work.

EDA51K is compatible with ScanPal™ EDA50K accessories, including battery charger, computer charging base and battery, saving customers the cost of accessories replacement and reducing the total cost of ownership.

At the same time, the compatibility with IH25 RFID reader enables EDA51K to be perfectly integrated into RFID solutions to help customers improve productivity, operational efficiency and quality of service.


Bulnex AD is a Platinum Partner and the only authorized Honeywell warranty and out-of-warranty service for the territory of the Republic of Bulgaria.

MECHANICAL

ENVIRONMENTAL PERFORMANCE

Dimensions: 164 mm x 73 mm x 24.5 mm (6.5 in x 2.9 in x 1.0 in) Weight: 300g (10.6 oz) with battery Display: 10.6 cm (4-inch) Resolution: WVGA 480 x 800 Type: Transmissive Backlight: LED Touchscreen: Multi-touch capacitive Keyboard: 26-key numeric main keypad; side keys: volume up/down, right and left scan keys; soft keys: 3 touch keys (Back, Home, Menu)

Operating Temperature: -10°C to +50°C (14°F to 122°F) Storage Temperature: -20°C to +60°C (-4°F to +148°F) Humidity: 10% to 90% (non-condensing) Drop: Multiple 1.2 m (4 ft) drops to concrete, 2 drops per 6 sides for a total of 12 drops under room temperature Tumble: 500x 0.5 m tumbles Electrostatic Discharge (ESD): ±8 kV direct; ±12 kV air Environmental Sealing: IP65 Vibration: Vertical rms = 1.04 g, Transverse; rms = 0.2 g, Longitudinal rms = 0.74 g

WIRELESS CONNECTIVITY WLAN: IEEE 802.11 a/b/g/n/ac radio, Wi-Fi certified 802.11 a/b/g/n/ac WLAN Security: Open, WEP, WPA/WPA2-PSK, PEAP, EAP-TLS, EAP-TTLS, EAP-PWD,EAP-SIM,EAPAKA WWAN: GSM & EDGE: Band2/3/ 5/8 WCDMA: Band1/2/4/5/ 6/8/ 9/ 19 FDD-LTE: Band1/ 2/ 3/ 4/ 5/ 7/ 8/ 9/ 12/ 13/ 17/19/20/ 25/ 26/ 28/30/66 TDD-LTE: Band38/39/40/41(2555~2655) Bluetooth: Bluetooth® Class 4.2 NFC: Integrated Near Field Communication

WARRANTY One-year factory warranty

ACCESSORIES (STANDARD) USB Communication Cable: Type-C USB 2.0, (communicates to PC, supports adapter/USB charging) Wall Adapter

ACCESSORIES (OPTIONAL) Hand Strap Replacement Battery Single Charging Cradle: for 1x terminal charging Quad Battery Charger: for 4x batteries charging USB Wall Adapter: 5V/2A

Processor: Qualcomm 1.8 GHz octa-core Memory: 3G/32G, 4G/64G Optional Operating System: Android 10 with Google Mobile Services Expansion Memory: MicroSDHC (up to 128 GB)

For more information

Honeywell Safety and Productivity Solutions

www.honeywellaidc.com

9680 Old Bailes Road Fort Mill, SC 29707 800-582-4263 www.honeywell.com

HF510 Data Sheet | Rev A | 08/20 © 2020 Honeywell International Inc.

PC Communication: Type-C USB2.0 Battery: 4000 mAh @ 3.8 V Camera: 13-megapixel color camera with autofocus and LED flash GPS: GNSS Receiver for GPS, GLONASS and Compass (Beidou) (for WWAN only) Button Batteries: 22 mF super-cap Real-Time Clock: 10-min backup via super-cap Charging Time: 4 hours Battery Runtime: 12 hours+ Engine: 1D/2D: N6703 LEDs: Battery Condition: Red/Green/Blue Scan Indication: Red/Green light Vibration: Vibration Motor Sensors: Proximity, Light, Acceleration
