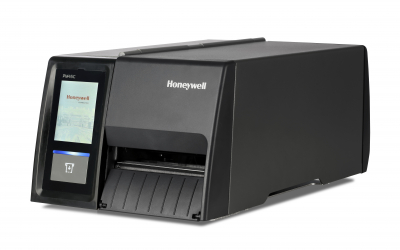

Barcode printer PM45

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer’s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell’s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell’s Operational Intelligence software, users can remotely manage and monitor the PM45 printer’s diagnostics and output performance. The PM45 supports a wide range of media – including ink-in and ink-out ribbons with a 1-inch core size – enhancing the time between media resupplies.
The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell’s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.

PHYSICAL CHARACTERISTICS PM45:

L x H x W: 483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)

Weight: 13.2 kg (29.1lbs) PM45c: L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)

Weight: 12.6 kg (27.7 lbs)

PM45c with Mega Door L x H x W: 500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)

Weight: 12.8 kg (28.0 lbs)

PM45/45C PRINT SPECIFICATIONS

Max.Width at 203 dpi: 108 mm (4.25 in)

Max.Width at 300 dpi: 105.7 mm (4.17 in)

Max.Width at 406 dpi: 104 (4.09 in)

Max.Width at 600 dpi: 105.6 mm (4.16 in)

Max.length at 203 dpi: 4.8 m (189 in)

Max.length at 300 dpi: 2.2m (85in)

Max.length at 406 dpi: 1.2 m (47.2 in)

Max.length at 600 dpi: 0.55m (22in)

PRINT SPEED

At 203 dpi: 50-350 mm/s (2-14ips)

At 300 dpi: 50-300 mm/s (2-12ips)

At 406 dpi: 50-250 mm/s (2-10ips)

At 600 dpi: 50-150 mm/s (2-6ips)

PRINT RESOLUTION

At 203 dpi: 8 dots/mm

At 300 dpi: 11.8 dots/mm

At 406 dpi: 16 dots/mm

At 600 dpi: 23.6 dots/mm

SOFTWARE

Printer Command Languages:

Fingerprint (FP)

Direct Protocol (DP)

Intermec Printer Language (IPL)3 ZSim2 (ZPL-II),

DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#
