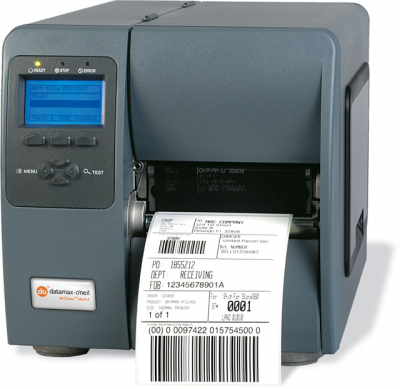

Barcode printer M class Mark II

The M-Class™ Mark II family of compact industrial printers offers outstanding value with a broad range of features. The smaller footprint is ideal for users who need the power of industrial printers but must consider space limitations. The M-Class is a perfect solution for warehouse, healthcare, logistics and retail applications. The printer family’s modular design makes maintenance and part replacement easy. And the flexible design allows a variety of options to be upgraded in the field.
M-Class Mark II printers reduce the total cost of ownership with easyto-maintain components. They offer you a broad range of connectivity to meet diverse application requirements and easily integrates into most networks. With an easy-to-navigate LCD graphics display for menu and printer function control, they're designed for any level of user. Support of UHF or HF RFID configurations for current or future requirements protects your printer investments. The high-quality features, performance and rugged reliability make the M-Class Mark II family a better value than most printers on the market.
And you can use M-Class Mark II printers in a wide variety of applications with a range of media compatibility, connectivity, emulation support and options, including RFID support. They’re easy on your budget, while providing industrial printing performance in a small footprint.

Benefits:

  • Rugged construction features a precision diecast aluminum frame.
  • Five-button, 128x64 LCD graphical backlit display is easy to read, enabling user-friendly label configuration setup.
  • Modular design  allows for user field-upgradeable options like thermal transfer and internal rewinder.
  • Utilizes widely used DPL and supports PL-Z (Zebra), PL-I (Intermec) and PL-B (Boca) printer command languages for easy emulations.
  • Multi-language menu available in English, Spanish, German, Italian and French.

Bulnex AD is a Platinum Partner and the only authorized Honeywell warranty and out-of-warranty service for the territory of the Republic of Bulgaria


MECHANICAL

Dimensions (HxWxD):
259 mm x 257 mm x 462 mm
(10.21 in x 10.10 in x 18.19 in)

Weight:
12.2 kg (27.0 lbs)

Operating Temperature:
4°C to 35°C (40°F to 95°F)

Clock:
On-board real-time clock (M-4210 & M-4308)

Display:
128 x 64 LCD backlit graphics display

Construction:
Solid Aluminum die cast Frame with Metal cabinet, clear side window to view monitor media supply levels

ENVIRONMENTAL

Operating Temperature:
4°C to 35°C (40°F to 95°F)

MEDIA COMPATIBILITY

Roll-Fed:
203.2 mm (8.0 in) O.D. on a 76.2 mm (3.0 in) core; 177.8 mm (7.0 in) on a 38.1 mm (1.5 in) core; fan-fold stock: accepted from rear and bottom of printer; die-cut or continuous labels; perforated or continuous tag/ticket stock

Media Thickness Range:
0.0635 mm (0.0025 in) to 0.254 mm (0.01 in)

Media Width Range:
19 mm (0.75 in) to118.1 mm (4.65 in)

Minimum Media Length:
Tear-off and rewind modes: 6.35 mm (0.25 in); peel and cutter modes: 25.4 mm (1.0 in)

Standard Ribbon Lengths:
300 m (984 ft),450m (1476 ft);

Ribbon Width Range:
25.4 mm (1.0 in) to114.3 mm (4.5 in);

Media Sensing:
“See through” for liner-backed die-cut labels and tags: reflective sensor for black-mark label media

Label Backfeed:
For use with optional cutter or present sensor

COMMUNICATIONS INTERFACE

Communication Ports (Standard):
SerialRS232, parallel bi-directional, USB 2.0compatible

Communication Ports (Optional):
Ethernet-wired LAN 10/100, wireless 802.11b/g

WARRANTY

Printer (When used with approved supplies:
1 year

Printhead (When used with approved supplies):
1 year or 25,400,000 mm (1,000,000 in), which ever comes first

Extended Warranty:
Contact your Honeywell sales representative for extended warranty options available through Honeywell Repair Services

SOFTWARE

Printer Command Languages:
PL-Z (Zebra),PL-I, (Intermec), PL-B (Boca)

DMX Config:
Complete printer setup Utility, DMX NetManager, embedded network web pages, Windows® Drivers - NT, XP, Vista

Firmware:
Universal

SUPPORTED BARCODE SYMBOLOGIES

Graphics Supported:
.pcx, .bmp, .img and ASCII format files

Linear Symbologies:
Code 3 of 9, UPC-A,UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8,EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5digit addendums, Postnet, UCC/EAN Code128, Telepen, Planetcode, FIM, USPS-4 State;

Resident Fonts:
Ten alphanumeric fonts from2.5- to 23-point size, including OCR-A, OCR-B,CG Triumvirate™ smooth font from AGFA®

Character Sets:
More than 50 resident charactersets; Unicode/UTF8 support

Memory:
16MB DRAM/8MB Flash

2D Symbologies:
MaxiCode, PDF417, USD-8, Datamatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 Databar

Downloadable Font Types:
True-Type, Bitmap

Font Expansion/Rotation:
All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°

Reversible Field/Mirror Image:
Any font or graphic field can be printed as a normal or reverse image
