Wearable scanner 8680i

Workers can lose 5 seconds every time they pick up, scan, and set down a handheld scanner. For workflows with frequent scanning, such as picking, sorting, putaway, and packing, this inefficient movement multiplies, representing a significant part of the workday. Wearable scanning ensures data capture is always at hand, increasing productivity and efficiency, and leaving the hands free to attend to other tasks.

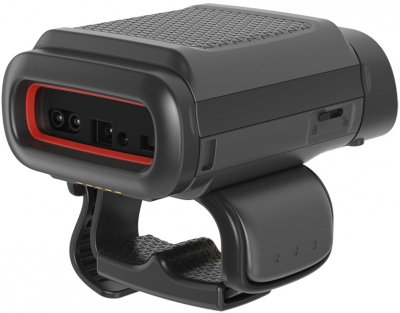

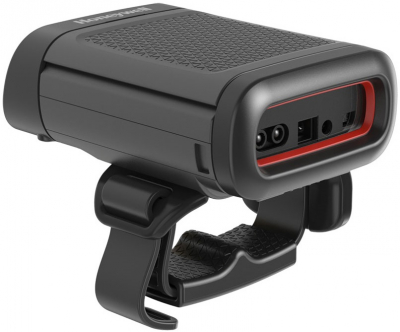

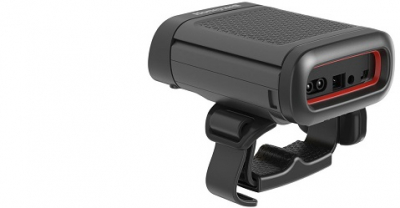

The Honeywell 8680i wearable mini mobile computer is a compact, high-performance, hands-free cordless scanner designed to help businesses improve workflow efficiency with every scanning transaction, reducing operational slowdown and support costs, and improving productivity.

Available in a Standard model for simple Bluetooth-paired data collection or an Advanced model for standalone operation in directed workflows, the 8680i wearable mini mobile can add efficiency and effectiveness to the most common tasks.

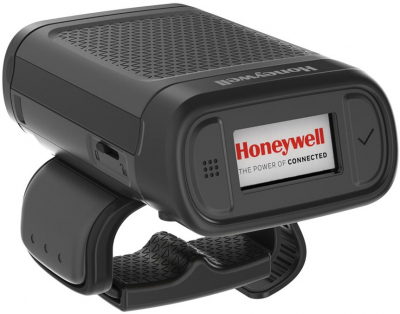

The Standard version offers lightweight, ergonomic Bluetooth-wearable scanning with clear communication of wireless connection, battery status, and scan results. With Wi-Fi, a customizable user-facing display, and a two-button interface, the Advanced model enables streamlined workflows with a single device vs. a scanner and mobile computer combination. Key information can be presented to the worker on the display to enable task-specific responses (for example, confirm action completion or mark an exception).

Flexible configuration options can be tailored to the work environment with a choice of a two-finger ring or a glove option (coming soon), and slim or extended batteries to suit the duty cycle, shift length, and size/weight priorities.

MECHANICAL

Dimensions (L x W x H):

Slim Battery Version: 81 mm x 56 mm

x 31.3 mm (3.2 in x 2.2 in x 1.2 in)

Extended Battery Version: 81 mm x

56 mm x 35 mm (3.2 in x 2.2 in x 1.4 in)

Weight:

Triggered Ring with Slim Battery:

151 g (5.3 oz)

Triggered Ring with Extended Battery:

168 g (5.9 oz)

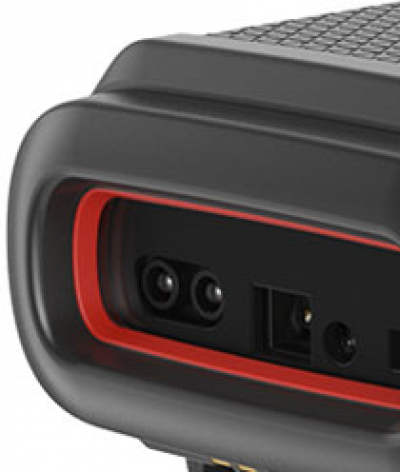

Scan Performance:

Scan Pattern: Omni-directional

area imager

Motion Tolerance: Up to 584 cm

(230 in)/second

Symbol Contrast: 20%

minimum reflectance

Pitch: ±45°

Skew: ±60°

Warranty: Two-year factory warranty

(Note: Battery warranty is one year.)

ENVIRONMENTAL

Operating Temperature: -20°C to 50°C

(-4°F to 122°F)

Storage Temperature: -20°C to 60°C

(-4°F to 140°F)

Humidity: 0% to 95% relative humidity

(non-condensing)

Drop: 30 1.5 m (4.9 ft) drops to concrete

Tumble: 2,000 0.5 m (1.6 ft) tumbles

Environmental Sealing: IP54

Light Levels: 0 to 100,000 lux

ESD: ±20 kV air discharge, ±10 kV

contact discharge

WIRELESS

Radio Range:

Standard and Advanced Model

Bluetooth: 2.4 GHz to 2.5 GHz (ISM

Band) Adaptive Frequency Hopping

Bluetooth v. 4.1: Class 1; 100 m (330 ft)

line of sight; NFC communications to

simplify pairing

Advanced Model Wi-Fi: Bluetooth as

noted plus Wi-Fi 802.11 a/b/g/n/ac,

2.4 and 5 GHz

Security Standards: WPA, WPA2,

WEP, WPA2 EAP (TLS, TTLS, PEAP

GTC, and PEAP MSCHAPv2)

Connection: Connection,

Auto-reconnect, Intra Profile

connection (roaming), Hidden

and Broadcast SSIDs

Soft Roaming: Simple and learned,

across bands (all combinations of 2.4

GHz and 5 GHz), DFS Channels, and

802.11 modes

Opportunistic Key Caching (OKC)

Battery: 3.6 V, 1200 mAh (slim),

2160 mAh (extended)

Number of Scans:

Slim Battery Version: 3,000 over

8-hour shift

Extended Battery Version: 8,000

over 10-hour shift

Expected Charge Time: 4 hours

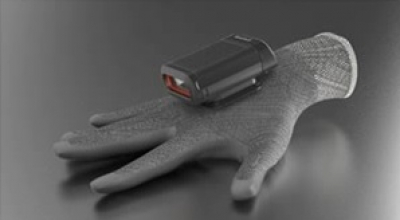

GLOVE CHARACTERISTICS:

Strap glove securely locates 8680i on

back of hand for optimum dexterity,

ergonomics, and user comfort

Highly durable design for long lifespan,

reduced consumable costs

Compatible with bare hand

or conventional glove for

comfort and user safety

One size; highly adjustable at

index finger, palm, and wrist

Left- and right-hand versions
