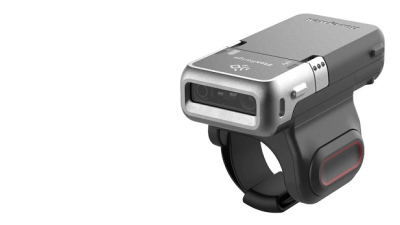

Wearable scanner 8675i

The 8675i offers always-at-hand wearable scanning to improve workflow productivity. Premium scanning performance ensures quick work of even damaged or low quality barcodes.

FlexRange(TM) technology provides scan distance to enable wearable efficiency in workflows that previously only solvable with bulkier, heavier handheld devices.

Smooth, fast reading from near to far ensures that the full range (100% UPC from near contact to 5’, 100 mil Code 39 to 10M/33’) has fast, intuitive scanning response.
    A standard-range only option
offers lower acquisition cost for arms-length workflows. In all aspects of design, the 8675i has been optimized for ergonomics. Height off of the finger has been minimized
to prevent interference in the work environment. All user-contact surfaces have been tailored for comfort, easy adjustment, and simple use.

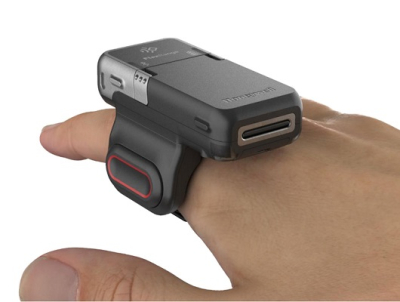

     The triggered ring is simple
to swap from right to left hand configuration, and the finger strap buckle is both easy to operate and low-profile to prevent interference between fingers.
The 8675i can be converted from ring to glove instantly and with no tools; the strap glove is simple, minimal, and easily adjustable to cover the range of
 users. Made of non-absorbent materials, 8675i wearable accessories are simple to clean with approved disinfectant agents.
     The 8675i has been designed to
satisfy the needs of demanding workflows. It is multi-shift ready, with an easy to replace battery to keep the scanner up and running that also enables the
 battery to be simply replaced once it degrades through normal use, extending the service life of the 8675i.
    User-facing LEDs communicate
Bluetooth connection, battery state of charge and even when battery health requires a replacement. Best-in-class 2,000 x ½ meter tumble specification
 ensures that 8675i will endure the frequent knocks a wearable device in a fast-paced environment will inevitably experience. IP65 sealing and broad
 operating temperatures (-20 to 50C, -4 to 122F) ensure unconditioned warehouses, frozen environments are no problem for the 8675.
     A new outdoor aimer provides
accurate barcode targeting even in full daylight when laser aimers cannot be seen. And Operational Intelligence makes configuring, monitoring, and managing
 deployed devices simple.

Dimensions: 65.2 mm x 30.3mm x 15.2mm

Weight:

- Triggered ring with battery: 8675i-SR 63g

- 8675i-FR 66g

- Scanner module without wearable accessory or battery: 8675i-SR 50g

- 8675i-FR 53g

Scan performance:

Scan Pattern: Omni-directional area imager

Symbol Contrast: 20% minimum reflectance

Pitch: +/-60° Skew: +/-60°

Warranty: Two-year factory warranty (Note: Battery warranty is one year)

Radio Range: Bluetooth: 2.4 GHz to 2.5GHz Bluetooth v5.1 Class 1; 100m; BLE.

- NFC communications for simple tap-to-pair functionality.

Battery: 3.85V, 570mAh

Number of scans: 12,000 over 10 hour shift

Operating Temperature: 8675i-FR: -20°C to 50°C

Storage Temperature: -20°C to 60°C

Humidity: 0% to 95% relative humidity (non-condensing)

Drop: 1.8m Mil-Std-810 Drop Test at operating temperature 50x 1.5m  to concrete at operating temperature

Tumble: 2,000 1/2 m tumbles per IEC 60068-2-32 specification

Trigger: Rated for 5MM activation cycles

ESD: ±15 kV Air and ±8 kV Direct

Environmental Sealing: Independently certified to meet IP65 standards for moisture and particle intrusion
