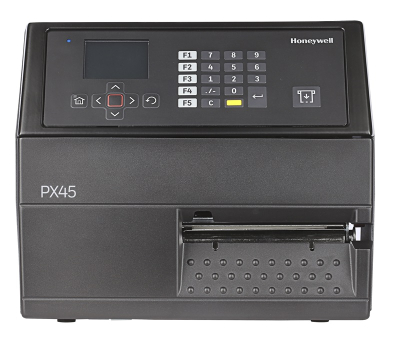

Barcode printers PX45/ PX65

The rugged, all-metal PX45 and PX65 printers deliver outstanding performance – up to 12 inches per second

from first label to last – and incorporate features that reduce downtime and minimize maintenance costs.

Both versions are available with 203 or 300 dpi resolution, and the PX45 also offers 406 dpi, for precision

labeling without any loss of speed. This is ideal for compliance labelling applications with variable data requiring immediate results.

The PX45 and PX65 printers’ smart design features support increased productivity in demanding environments.

As Smart Printers, they can host standalone applications, developed through the Fingerprint and C# programming languages,

helping reduce errors and streamline operational processes. The printers’ device management and diagnostic capabilities –

provided in webbased PrintSet 5 Configuration Management tool, configuration tool PrintSet MC for mobile devices and cloud-based

Operational Intelligence– reduce downtime and simplify deployment. Replacing printheads is fast and easy,

thanks to the magnetic QuickMount™ printhead design. The PX45 and PX65 printers are co-engineered and tested with Honeywell

labels and other media products, optimizing performance when used with genuine Honeywell media.

PX45/65 PRINT SPECIFICATIONS

Max. Width:

PX45: 112 (DT)/110 (TT) mm (4.4/4.3 in)

PX65: 167.4 mm (6.59 in)

WIRELESS CONNECTIVITY

WLAN:

IEEE 802.11 a/b/g/n/ac

Wi-Fi Certified

WEP, WPA, WPA2, 802.11x (EAPTTLS, LEAP, PEAP, FAST)

RFID Standards & Frequencies

Supports 18000-6C / EPC Generation 2 865-928 MHz

radio configured to comply with local UHF RFID regulations including

FCC and ETSI.

PRINT SPEED

PX45: At 203/300 dpi: 100–300 mm/s (4–12 ips) At 406 dpi: 100–250 mm/s( 4–10 ips)

PX65: At 203/300 dpi: 100–225 mm/s (4–9 ips)

Print Resolution

PX45: At 203 dpi: 8 dots/mm At 300 dpi: 11.8 dots/mm At 406 dpi: 16 dots/mm

PX65: At 203 dpi: 8 dots/mm At 300 dpi: 11.8 dots/mm

MEDIA SPECIFICATION

Type:

Labels and Tags and Linered media

Max./Min.Width:

PX45: 120/25.4 mm (4.72/1 in)

PX65: 170/76 mm (6.70/3 in)

Thickness: 2.4 to 10.0 mil

Configuration: Roll-fed or fan-fold

Media Sensing: Gap, Notch, Blackmark, Continuous, Media low, Media end

Another sensing: Label Taken sensing, Ribbon Low/End sensing, Head lift sensing

Label Roll Max.Diameter: 213 mm (8.38 in)

Label Roll Core ID: 38-76 mm (1.5-3 in)

Type: Wax, mid-range, resin

Ribbon Specification:

Type: Wax, mid-range and resin

Max.Ribbon Diameter: 80mm (3.15in)
