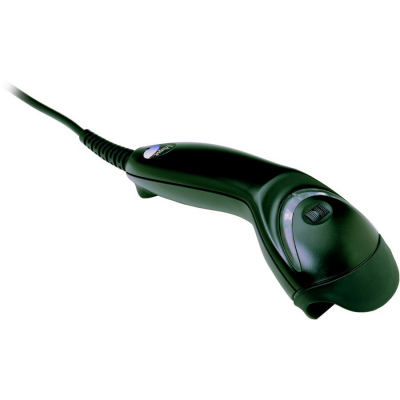

Honeywell Eclipse 5145

Honeywell's Eclipse 5145 ™ is a single-line, hand-held laser scanner with a compact form factor perfect for retail applications. Honeywell’s patented CodeGate® technology allows the user to easily target the desired barcode and complete data transmission with a simple press of a button, making the Eclipse 5145 a perfect selection for menu scanning, point-of-sale, document processing and inventory control. This entry-level laser scanning solution is ideal for organizations with limited barcode scanning needs.

CodeGate®: Ideal for menu scanning applications

CodeSense®: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected

Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager® and Orbit®

Flash ROM: Update firmware from any PC via MetroSet2® software provided by Honeywell

OPOS and JPOS system compatible: Easily adaptable to any end-user system environment


Weight100 g
Dimensions (LxWxH)169 mm x 63 mm x 51 mm
Input Voltage5 V ± 0.25 V
Operating Power675 mW, 125 mA, 5V
Host System InterfacesUSB,RS232,KBW (Keyboard Wedge)
Operating Temperature0°C to 40°C
Storage Temperature-40°C to 60°
Humidity5% to 95% relative humidity, non-condensing
Drop1.5 m
Environmental SealingSealed to resist airborne particulate contaminants
Light Levels4842 Lux
Scan PatternSingle scan line
Scan Speed72 scan lines per second
Print Contrast35% minimum reflectance difference Pitch
Scan AngleHorizontal: 50°, Skew 68°, 52°
Decode CapabilityReads standard 1D and GS1 DataBar symbologies.
Warranty3 year factory warranty
Standby Power350 mW, 70 mA, 5V
